Rear Center Console Vent, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

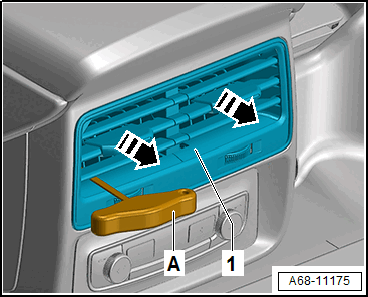

-- Open the vent -1-.

-- Carefully guide the Hook Tool -A- between the slats and engage behind the vent -1-.

-- Alternating between both sides, carefully remove the vent from the installation opening in the direction of the -arrow-.

-- Release and disconnect the connector.
