Rear Center Console Storage Compartment, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Place the trim on a soft and clean surface.

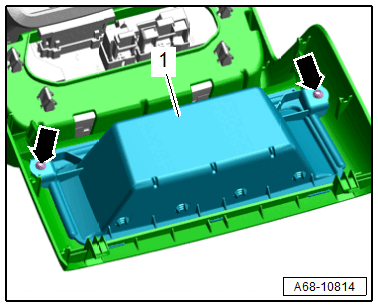

-- Remove the bolts -arrows-.

-- Remove the storage compartment/folding compartment socket -1-.
