Front FOOTWELL Center Console Trim Panel, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way to the rear and then into its lowest position.

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

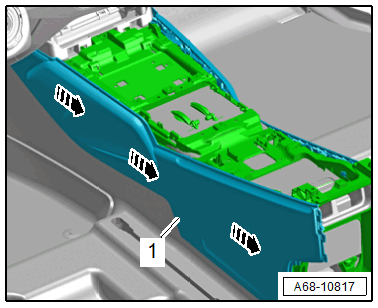

-- Pull the trim panel -1- toward the rear from the center console support direction of the -arrow-, and carefully remove between the center console support and the front seat.
