Front Center Console Storage Compartment, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Turn the center console cover and place it on a clean and soft surface.

-- Release and disconnect the connectors.

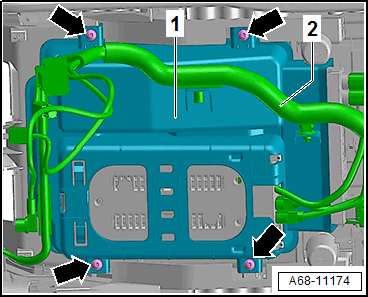

-- Unclip the wiring harness -2- from the brackets.

-- Remove the bolts -arrows-.

-- Remove the storage compartment -1-.
