Center Console Rear Trim, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seats all the way forward.

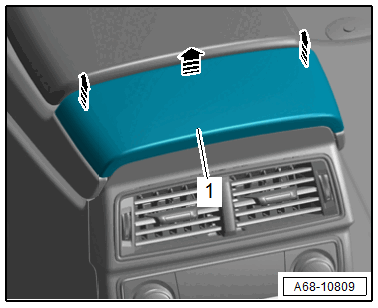

-- Unclip the front of the cover -1- with scraper no. 7 from the : VAS6845  in the direction of the -arrow- and remove backwards.

-- Remove the rear vent in the center console. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

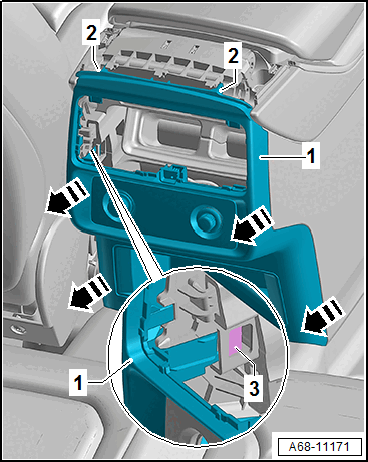

-- Unclip the trim -1- at the sides starting at the top from the center console in the direction of the -arrow-.

-- During this, loosen the inner locking mechanisms -3- on the right and left side.

-- Remove the trim -1- from the center console toward the rear.

-- Release and disconnect the connectors.
