Center Console Cover, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the front center armrest. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .

-- Remove the center console upper decorative trim. Refer to Upper Decorative Trim, Removing .

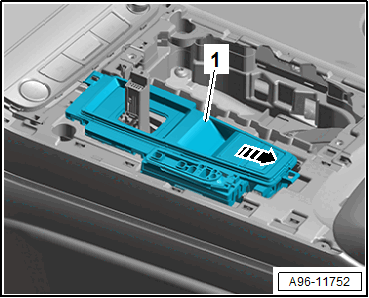

-- Push the Selector Lever Transmission Range Display -Y5- -1- toward the rear direction of the -arrow-.

-- Remove the selector lever transmission range display -1- upward while releasing and disconnecting the connector.

-- Remove the storage compartment insert  ) Center Console Upper Section => List Item: Storage Compartment Insert.

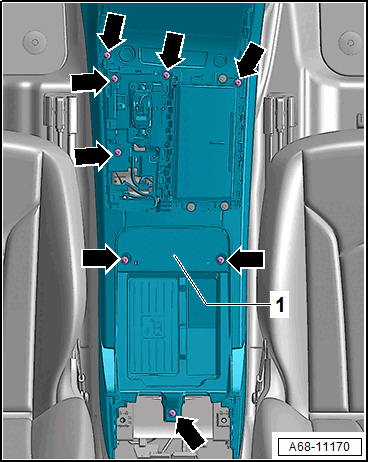

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

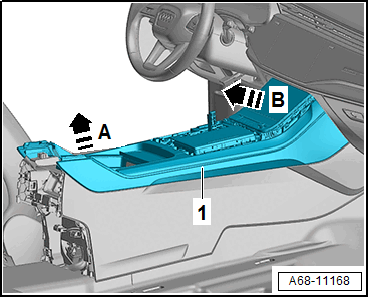

-- Loosen the center console cover -1- from the rear catches direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the center console cover -1- from the front catches direction of -arrow B-.

-- Lift the center console cover slightly and release and disconnect the connectors.
