Center Console Bracket, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Equipped on some models: remove the rear heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

-- Equipped on some models: remove the rear air duct. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

-- Unclip the wires on the bracket and free them up.

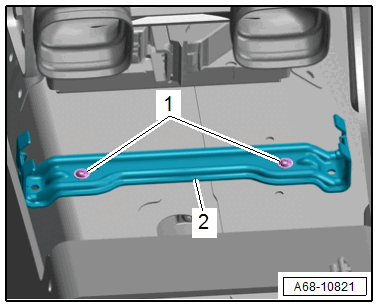

-- Remove the bolts -1-.

-- Remove the center console bracket -2-.
