Center Console CUPHOLDER, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console upper decorative trim. Refer to Upper Decorative Trim, Removing .

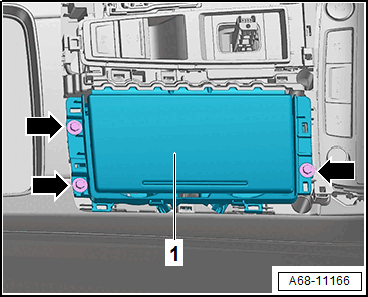

-- Remove the bolts -arrows-.

-- Remove the cupholder -1- upward while releasing and disconnecting the connector.
