CUPHOLDER Trim, Removing And Installing: Removing

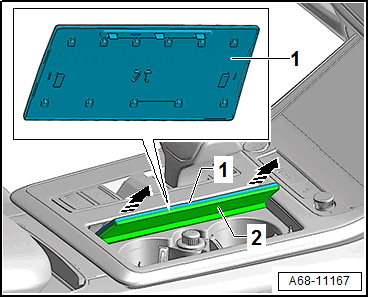

GWWA68-11167Courtesy of AUDI OF AMERICA, LLC

-- Open the cupholder cover halfway.

-- Pull the trim -1- strongly with both hands in the direction of the -arrow- off the cover -2- and remove.
