Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

Engine and Transmission Holder:VAS 6095A

Fig 1: Engine And Transmission Holder
Courtesy of AUDI OF AMERICA, LLC
Engine/Transmission Holder - Universal Mounting:VAS 6095/1

Fig 2: Identifying Universal Mount VAS 6095/1
Courtesy of AUDI OF AMERICA, LLC
Engine Bracket V8 TFSI:VAS 6095/1-17A , not illustrated
Engine Bracket V8 TFSI MLB:VAS 6095/1-18B , not illustrated

Procedure

Courtesy of AUDI OF AMERICA, LLC

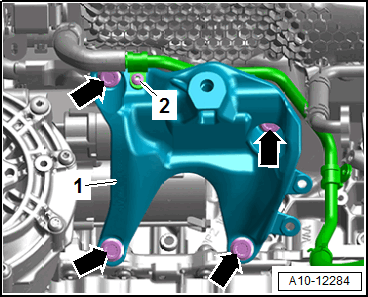

-- Remove the bolts -arrows- and the left engine support -1-.

-- Remove the nuts -arrows- and free up the wires (example image).

Courtesy of AUDI OF AMERICA, LLC

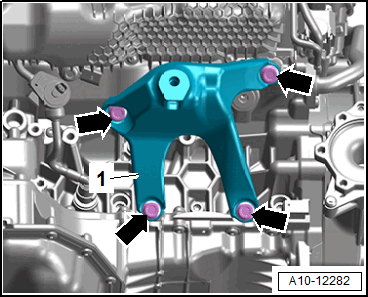

-- Remove the bolts -arrows- and remove the right engine support -1- (example image).

Courtesy of AUDI OF AMERICA, LLC

-- Secure the starter on the engine.

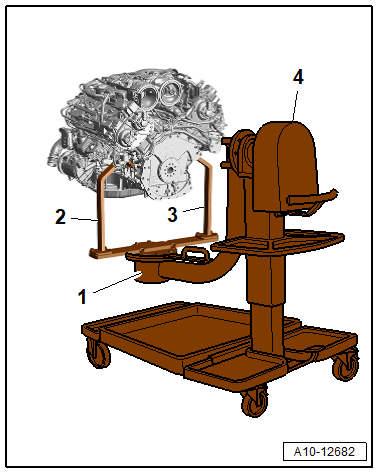

-- Secure the engine to the Engine and Transmission Holder:VAS 6095 as shown, for this, note the installation instructions from the manufacturer.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the Engine Bracket V8 TFSI MLB:VAS 6095/1-18B -item 2- and the Engine Bracket V8 TFSI:VAS 6095/1-17A -item 3- with 40 Nm.
