Engine, Removing From Scissor Lift Table

Special tools and workshop equipment required

Lifting Tackle:3033

Fig 1: Lifting Tackle (3033)
Courtesy of AUDI OF AMERICA, LLC
Shop Crane:VAS 6100

Fig 2: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Lift Arm Extension:VAS 6101

Fig 3: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI OF AMERICA, LLC

Procedure

Engine/transmission assembly removed and separated on Scissor Lift Table:VAS 6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- Remove the bolt -arrow- and free up the bracket -3- with the wires -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of injury due to the engine weight shifting.

The possibility for parts of the body to be pinched or crushed increases.

- Transport the engine only without the transmission using the method described.

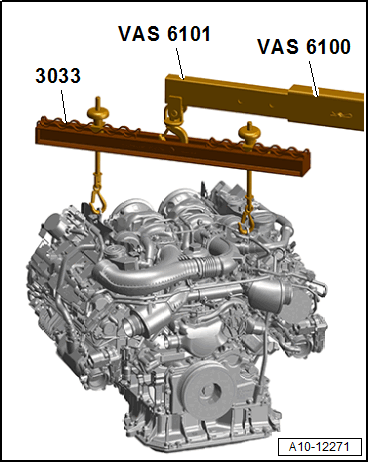

-- Attach the Lift Arm Extension:VAS 6101 to the Shop Crane:VAS 6100 .

-- Engage the Lifting Tackle:3033 on the engine lifting eyes and on the shop crane as shown.

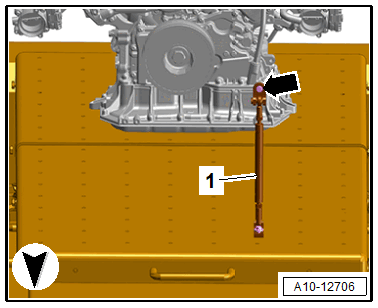

-- Remove the Scissor Lift Table - Q7 Set - Articulated Joint Support :VAS 6131/13-7 -item 1- from the engine.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolt -2- from the engine mount.

Courtesy of AUDI OF AMERICA, LLC

-- Pry up the engine with the workshop crane.
