Right Transmission Mount, Removing And Installing: Removing

-- Remove the right front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Remove the right upper subframe shield. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

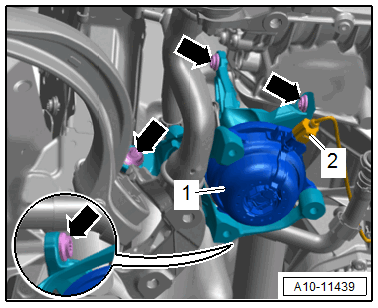

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant hose.

-- Remove the bolts -arrows- and remove the right transmission mount -1- with the transmission support.

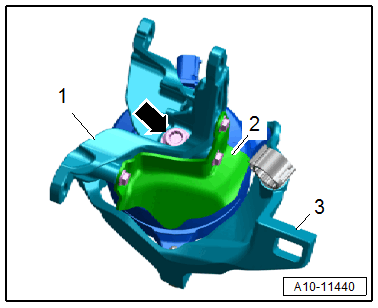

-- Remove the bolt -arrow-, remove the transmission support -1- and pry out the mount -3- from the transmission mount -2-.

Courtesy of AUDI OF AMERICA, LLC
