Left Transmission Mount, Removing And Installing: Removing

-- Remove the rear noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the left upper subframe shield. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

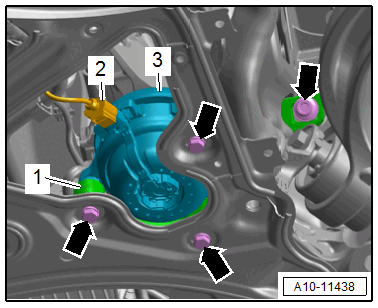

-- Disconnect the connector -2-.

Fig 1: Transmission Mount Valve Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

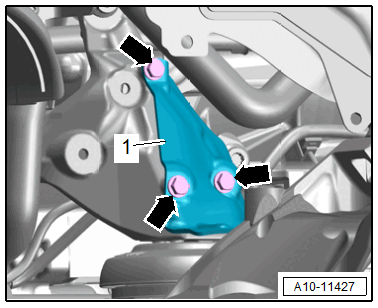

-- Remove the bolts -arrows- and remove the left transmission mount heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

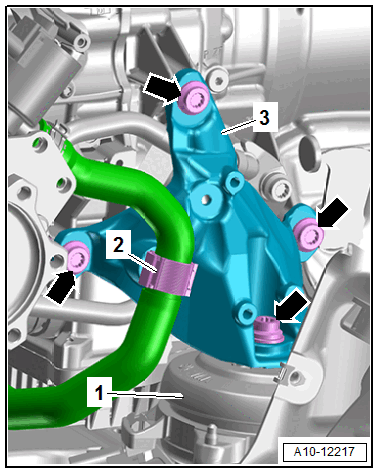

-- Remove the bolt -lower arrow- and the transmission mount -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip -2- and free up the coolant hose.

-- Remove the bolts -upper arrow- and remove the side transmission support -3-.
