Overview - Engine Mount

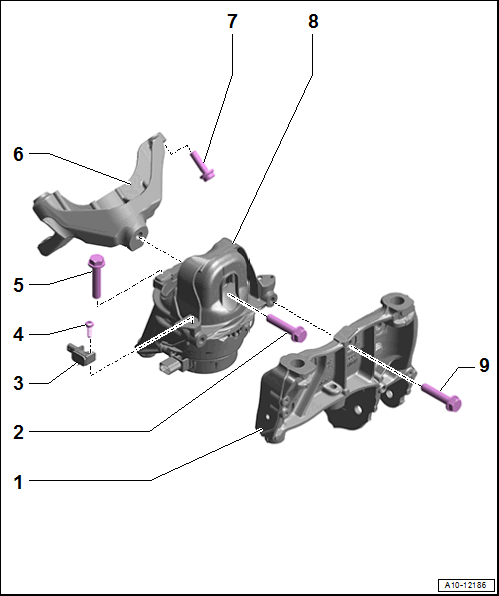

Fig 1: Exploded View Of Engine Mount

Courtesy of AUDI OF AMERICA, LLC

Subframe
Bolt
- Always replace after removing
- 90 Nm + 90°
Assembly Mount Sensor
- Equipped on some models
  - Assembly Mount Sensor 1 -G748-, right
  - Assembly Mount Sensor 2 -G749-, left
- Removing and installing. Refer to ASSEMBLY MOUNT SENSOR, REMOVING AND INSTALLING .
Bolt
- 10 Nm
Bolt
- 55 Nm
Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- 50 Nm + 90°
Engine Mount
- with
  - Left Electrohydraulic Engine Mount Solenoid Valve -N144- /Assembly Mount Actuator 2 -N514- left
  - Right Electrohydraulic Engine Mount Solenoid Valve -N145- /Assembly Mount Actuator 1 -N513- right
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 30 Nm
