Overview - Driving Dynamic Support

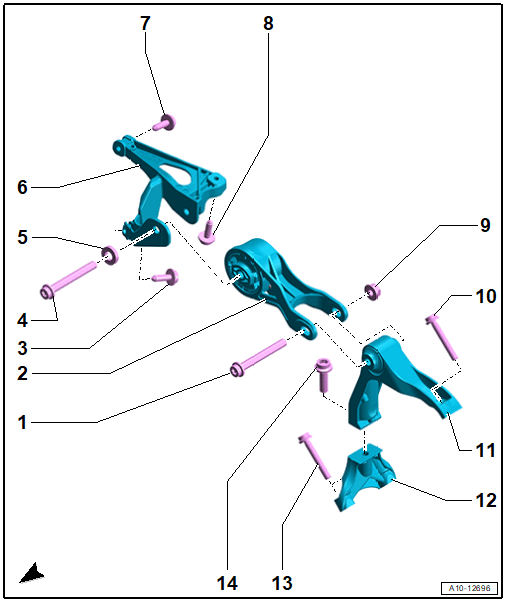

Fig 1: Exploded View Driving Dynamic Support

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 55 Nm
2. Driving Dynamic Support
   • Removing and installing. Refer to DRIVING DYNAMIC SUPPORT, REMOVING AND INSTALLING .
3. Bolt
   • 20 Nm
4. Bolt
   • 55 Nm
5. Washer
   • Installed, depending on the version
6. Mounting Bracket
   • For driving dynamic support
   • Removing and installing. Refer to DRIVING DYNAMIC SUPPORT MOUNTING PLATE, REMOVING AND INSTALLING .
7. Bolt
   • 20 Nm
8. Bolt
   • 20 Nm
9. Nut
10. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 2.
11. Engine Bracket Upper Section
    • For driving dynamic support
    • Removing and installing. Refer to DRIVING DYNAMIC SUPPORT ENGINE BRACKET, REMOVING AND INSTALLING .
12. Engine Bracket Lower Section
    • For driving dynamic support
    • Removing and installing. Refer to DRIVING DYNAMIC SUPPORT ENGINE BRACKET, REMOVING AND INSTALLING .
13. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 2.
14. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 2.

Driving Dynamic Support Engine Bracket - Tightening Specifications and Sequence

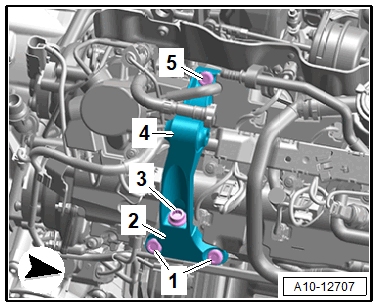

Fig 2: Driving Dynamic Support Engine Bracket - Tightening Specifications and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the steps in the sequence shown:
