Right Engine Mount, Removing And Installing: Removing

-- Support the engine in the installation position (refer to ENGINE, SUPPORTING IN INSTALLATION POSITION ) and pretension it with the Engine Support Set - Spindle:10-222B/11  until the pressure on the engine mount is released.

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Vehicles with Generator:

Courtesy of AUDI OF AMERICA, LLC

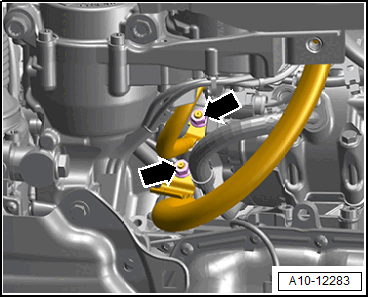

-- Remove the nuts -arrows- and free up the wires (example image).

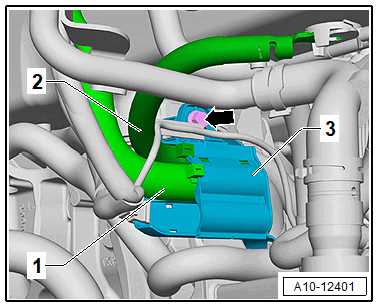

-- Remove the bolt -arrow- and free up the bracket -3- with the wires -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Starter Generator:

-- Remove the starter generator. Refer to GENERATOR, REMOVING AND INSTALLING .

Continuation for All Vehicles:

-- Release and disconnect the connector -arrow- for the Right Electrohydraulic Engine Mount Solenoid Valve -N145-. (Left shown.)

-- Free up the electrical wire.

-- Lift the engine using the Engine Support Bridge - Spindle:10-222A/11  -1- on the correct side to dimension -a-.

• Dimension -a- = approximately 20 mm.

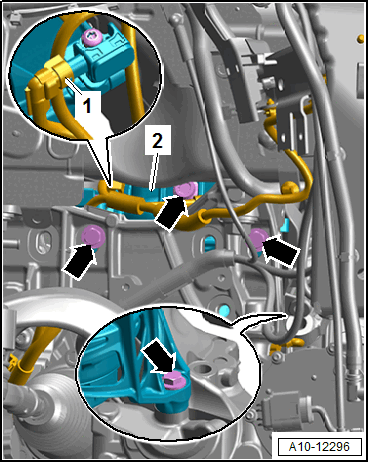

-- If installed, disconnect and free up the connector -1- for the Assembly Mount Sensor 1 -G748-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the engine mount -2- to do so lift the right of the engine slightly.
