Left Engine Mount, Removing And Installing: Removing

-- Support the engine in the installation position (refer to ENGINE, SUPPORTING IN INSTALLATION POSITION ) and pretension it with the Engine Support Set - Spindle:10-222B/11 until the pressure on the engine mount is released.

-- Remove the A/C compressor from the bracket and tie it up toward the front. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

-- Remove the left upper subframe shield. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

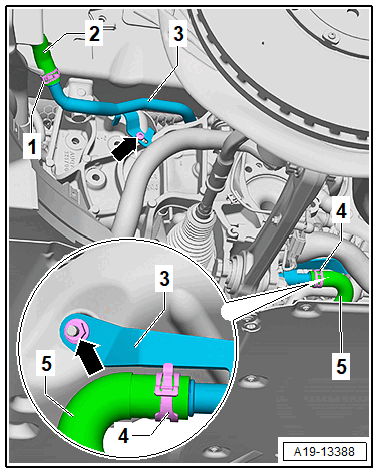

-- Remove the bolt and nut -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the coolant pipe -3- to the side.

-- Disconnect the connectors and free them up:

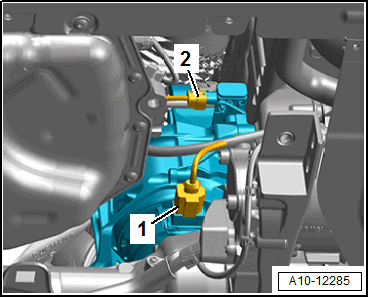

Fig 1: Left and Right Electrohydraulic Engine Mount Solenoid Valve -N144- / -N145- component location with Assembly Mount Actuator 1 and 2 -N513- / -N514- and Assembly Mount Sensor 1 and 2 -G748- / -G749-

Courtesy of AUDI OF AMERICA, LLC

For the Left Electrohydraulic Engine Mount Solenoid Valve -N144-
For the Assembly Mount Sensor 2 -G749- (depending on vehicle equipment)

-- Free up the wire.

-- Remove the bolts -arrows- for the engine mount -1- (example image).

Courtesy of AUDI OF AMERICA, LLC

-- Lift the engine using the Engine Support Bridge - Spindle:10-222A/11 -1- on the correct side to dimension -a-.

Fig 2: Identifying Engine Support Bridge - Spindle 10 - 222 A /11

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = approximately 20 mm.

-- Remove the engine mount.
