Map Controlled Engine Cooling Thermostat -F265-, REMOVING AND INSTALLING: Removing

Preliminary work may be required depending on the model. Refer to MAP CONTROLLED ENGINE COOLING THERMOSTAT -F265-, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

Courtesy of AUDI

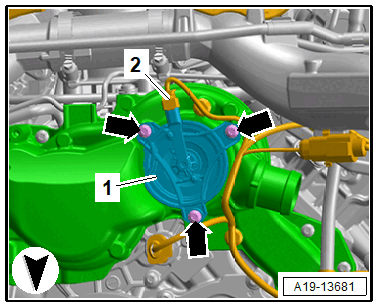

-- Remove the bolts -arrows- and the Map Controlled Engine Cooling Thermostat -F265- -item 1-.

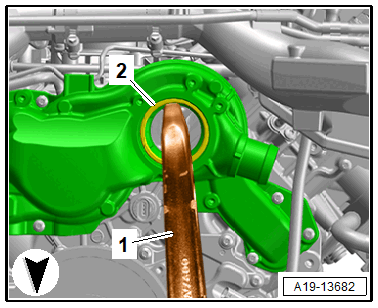

-- Dismount the seal -2- with the extractor lever -2-.

Courtesy of AUDI
