Map Controlled Engine Cooling Thermostat -F265-, REMOVING AND INSTALLING: Installing

Install in the reverse order of removal while noting the following:

• Replace the gasket and o-ring after removal.

-- Push the seal -1- on the Thrust Piece:T40425  -arrows-.

Courtesy of AUDI

• The open side of seal faces upward.

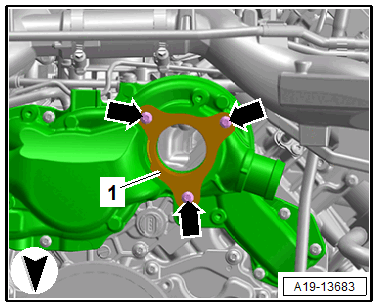

-- Install the seal with the Thrust Piece:T40425  -item 1- to do so turn the bolts -arrows- all around correspondingly one half a turn all the way.

Courtesy of AUDI

-- Check if the Thrust Piece is positioned all around on the cylinder block. If necessary, drive in with light hammering.

Additional procedures depending on the model. Refer to MAP CONTROLLED ENGINE COOLING THERMOSTAT -F265-, REMOVING AND INSTALLING .
