Overview - Auxiliary Radiator

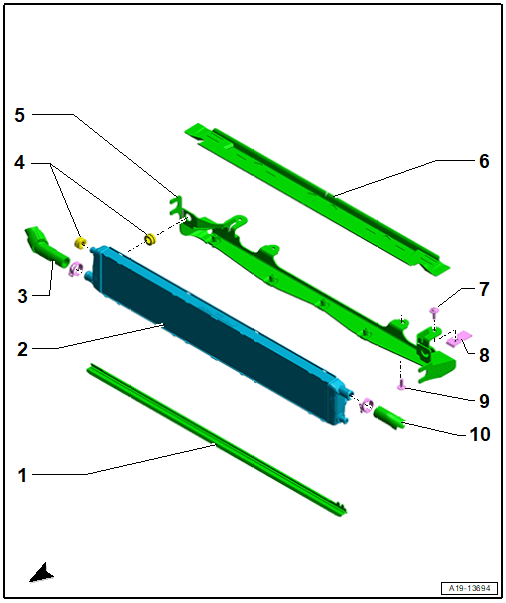

Fig 1: Exploded View Of Auxiliary Radiator
GWWA19-13694Courtesy of AUDI OF AMERICA, LLC
  1. Air Duct
  2. Transmission Fluid Cooler Auxiliary Radiator
    • Removing and installing
  3. Coolant Hose
  4. Radiator Mount
  5. Bracket
    • For Transmission Fluid Cooler Auxiliary Radiator
  6. Air Duct
  7. Bolt
    • Quantity: 2
    • 8 Nm
  8. Speed Nut
  9. Bolt
    • Quantity: 2
    • 4.5 Nm
  10. Coolant Hose
