Overview - Coolant Expansion Tank

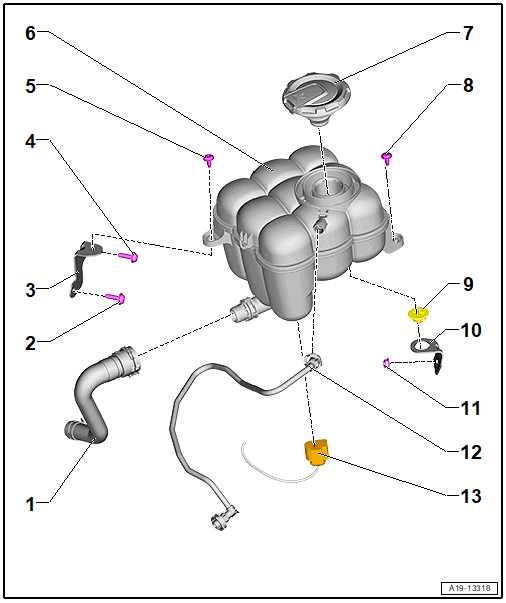

Fig 1: Exploded View Of Coolant Expansion Tank
GWWA19-13318Courtesy of AUDI OF AMERICA, LLC
  1. Coolant Hose
  2. Bolt
    • 8 Nm
  3. Bracket
  4. Bolt
    • 8 Nm
  5. Bolt
    • 7.5 Nm
  6. Coolant Expansion Tank
  7. Cap
  8. Bolt
    • 7.5 Nm
  9. Grommet
  10. Bracket
  11. Nut
    • 4 Nm
  12. Coolant Hose
  13. Connector
    • For the Engine Coolant Level Sensor -G32-
