Coolant Expansion Tank, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

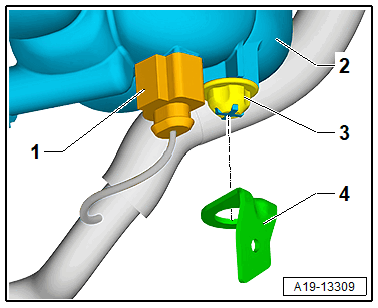

-- Guide the guide piece from the coolant expansion tank -2- with the grommet -3- in the bracket -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the breather line with connector coupling. Refer to Figure.

-- Fill coolant, check the coolant level and add if necessary. Refer to COOLANT, DRAINING AND FILLING .
