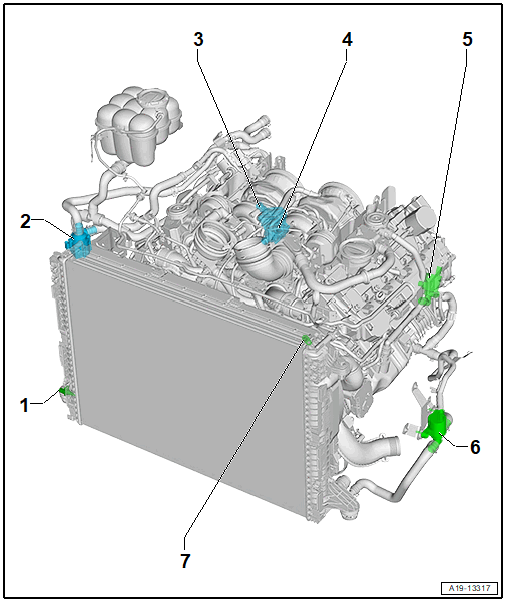

Component Location Overview - Cooling System, Without Auxiliary Radiator For Transmission Fluid Cooling
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Component location: on the right side of the radiator
- Overview. Refer to OVERVIEW - ENGINE/MOTOR COOLANT TEMPERATURE SENSOR .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
- Coolant Recirculation Pump -V50-
- Component location: front right behind the wheel housing liner
- Overview. Refer to OVERVIEW - ELECTRIC COOLANT PUMP .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and installing. Refer to ELECTRIC COOLANT PUMP, REMOVING AND INSTALLING .
- Transmission Fluid Cooling Pump -V478-
- Component location: rear right of the engine
- Overview. Refer to OVERVIEW - ELECTRIC COOLANT PUMP .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and installing. Refer to Transmission Fluid Cooling Pump -V478-, REMOVING AND INSTALLING, VEHICLES WITH AUXILIARY RADIATOR FOR TRANSMISSION FLUID COOLER .
- After-Run Coolant Pump -V51-
- Component location: rear right of the engine
- Overview. Refer to OVERVIEW - ELECTRIC COOLANT PUMP .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
- Transmission Coolant Valve -N488-
- Component location: left on the transmission
- Overview. Refer to OVERVIEW - COOLANT VALVES .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and installing. Refer to Transmission Coolant Valve -N488-, REMOVING AND INSTALLING .
- Transmission Fluid Cooling Valve -N509-
- Component location: on left front longitudinal member, behind the wheel housing liner
- Overview. Refer to OVERVIEW - COOLANT VALVES .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and installing. Refer to Transmission Fluid Cooling Valve -N509-, REMOVING AND INSTALLING .
- Motor Temperature Sensor -G407-
- Overview. Refer to MOTOR TEMPERATURE SENSOR -G407-, REMOVING AND INSTALLING .
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
