Refrigerant Lines, Removing And Installing, From Connection Point To Rear Expansion Valve: Removing
-- Switch off the ignition.
-- Discharge the refrigerant circuit. Refer to Refrigerant Circuit (R134a) or Working with A/C Service Station (R1234ya) (1 of 2) or Working with A/C Service Station (R1234yf) (2 of 2) .
-- Remove the refrigerant lines from the rear expansion valve. Refer to REAR EXPANSION VALVE, REMOVING AND INSTALLING .

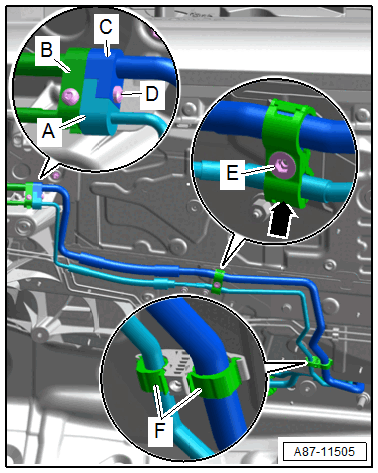

-- Remove the nut -E-, release the catch -arrow- and open the bracket.
-- Release the retainers and open the cable holder -F-.
-- Remove the bolt -D-.
-- Remove the refrigerant lines to the rear expansion valve -A and C- from the refrigerant lines -B- and to the front heater and A/C unit.
