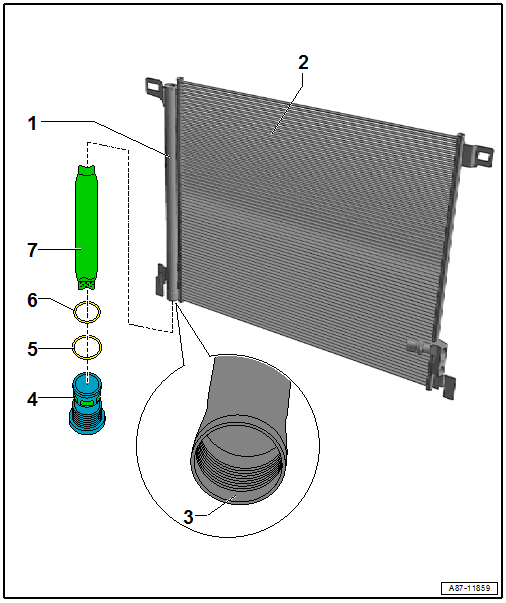

Overview - Condenser
Courtesy of AUDI OF AMERICA, LLC
- Receiver/Dryer
- Condenser
- On vehicles with a high-voltage system the High Pressure Sensor -G65- will be omitted from end of 05/2017. Refer to the Parts Information. The A/C Pressure/Temperature Sensor -G395- assumes the function of the High Pressure Sensor -G65- on these vehicles.
- On vehicles without High Pressure Sensor -G65- no connection is present from the manufacturer. If on vehicles without a High Pressure Sensor -G65- a condenser with this connection is installed, connect this connection with a closure cap (or with a High Pressure Sensor -G65- which is without function).
- There are different versions. Refer to the Parts Information.
- Refrigerant Lines, Disconnecting and Connecting. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING AT CONDENSER .
- Removing and Installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- There are different versions (with and without connection for the High Pressure Sensor -G65-). Refer to the Parts Information.
- Sealing Surfaces in the Receiver/Dryer
- Check for contamination or damage
- Plug with Filter Element
- O-Ring
- Replace after removing.
- Version. Refer to the Parts Information
- Coat with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS
.
- O-Ring
- Replace after removing.
- Version. Refer to the Parts Information
- Coat with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS
.
- Dryer Cartridge
