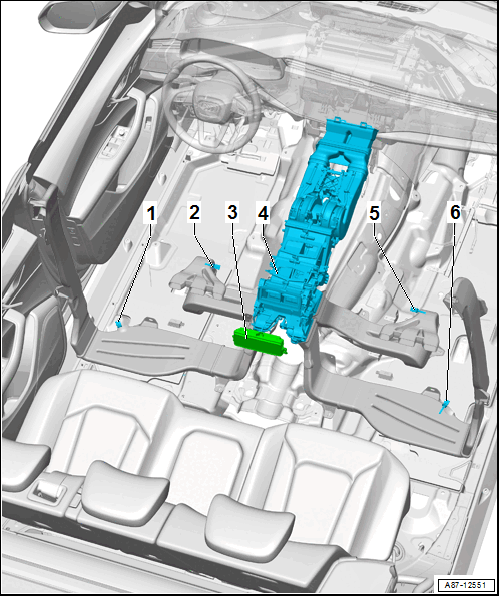

Component Location Overview - Components Inside Rear Passenger Compartment, Q8

Courtesy of AUDI OF AMERICA, LLC

1. Left Rear Upper Body Vent Temperature Sensor -G635-
   • Only "High" A/C system version with R134a/ R1234yf
   • Removing and Installing. Refer to LEFT/RIGHT REAR UPPER BODY VENT TEMPERATURE SENSOR -G635- / -G636-, REMOVING AND INSTALLING .
2. Left Rear Footwell Vent Temperature Sensor -G637-
   • Only "High" A/C system version with R134a/ R1234yf
   • Removing and Installing. Refer to Left Rear Footwell Vent Temperature Sensor -G637-, REMOVING AND INSTALLING .
3. Rear A/C Display Control Head -E265- / Auxiliary Display Control Head 1 -E857-
   • Removing and Installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
4. Rear Heater and A/C Unit
   • There are different versions.
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
   • Depending on vehicle equipment, the Left Rear Upper Body Vent Temperature Sensor - G635-, Right Rear Upper Body Vent Temperature Sensor -G636- and the Rear Upper Body Vent Temperature Sensor -G537- may be installed in the rear heater and A/C unit. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE MANIFOLD
5. Right Rear Footwell Vent Temperature Sensor -G638-
   • Only "High" A/C system version with R134a/ R1234yf
   • Removing and Installing. Refer to Right Rear Footwell Vent Temperature Sensor -G638-, REMOVING AND INSTALLING .
6. Right Rear Upper Body Vent Temperature Sensor -G636-
   • Only "High" A/C system version with R134a/ R1234yf
   • Removing and Installing. Refer to Right Rear Upper Body Vent Temperature Sensor -G636-, REMOVING AND INSTALLING .
