Rear Fresh Air Blower Control Module -J391-, REMOVING AND INSTALLING, Q7: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "High" A/C SYSTEM, PR NUMBER 9AH/ 9AQ .

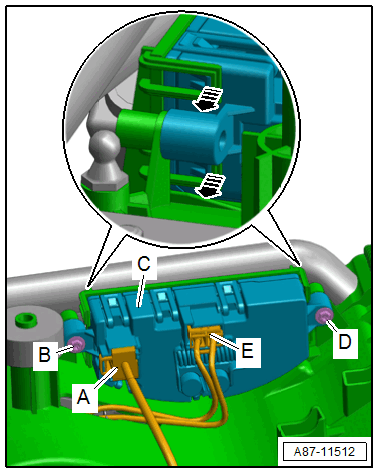

-- Disconnect the connectors -A and E-.

-- Remove the bolts -B and D-.

-- Release the catches -arrows- and remove the control module -C-.
