Rear Fresh Air Blower -V80-, REMOVING AND INSTALLING, "High" A/C SYSTEM: Installing
Install in reverse order of removal and note the following:

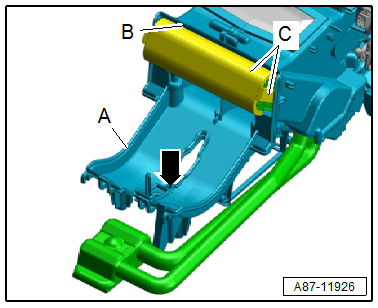

-- Check the evaporator for debris and the corresponding seals -B- for correct bonding and damage.
-- Check the condensation water drain -arrow- for debris.
TIP
- If the rear fresh air blower -V80- and the evaporator are replaced at the same time, first install the rear fresh air blower -V80- and then the new evaporator. The foam seal on new evaporator -B- is not preformed and must first be pressed together. This is not so simple via the rear fresh air blower -V80-.
- Pressure marks on the foam seal on evaporator -B- from the rear fresh air blower -V80- are not damage. They facilitate assembly.
-- Check the connection points -A and B- (groove/spring connection) for damage.
- Damaged or improperly joined components can result in noises during operation of the A/C system.
-- Perform a basic setting for the A/C system. Refer to GENERAL INFORMATION AND PROCEDURES - ACTUATORS, REMOVING AND INSTALLING .
