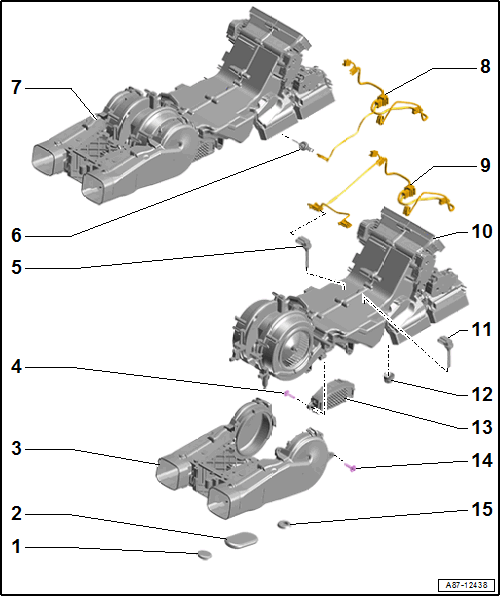

OVERVIEW - HEATER AND A/C UNIT ATTACHMENTS AND AIR INTAKE MANIFOLD, "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/ 9AU

Courtesy of AUDI OF AMERICA, LLC

Boot
Boot
Air Duct
- Removing and Installing. Refer to Rear Fresh Air Blower -V80-, REMOVING AND INSTALLING, "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5, 9AU .
Screw
- 2 Nm
- Quantity: 2
Right Rear Upper Body Vent Temperature Sensor -G636-
- Equipped on some models
- To check, Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to LEFT/RIGHT REAR UPPER BODY VENT TEMPERATURE SENSOR -G635- / -G636-, REMOVING AND INSTALLING .
Rear Upper Body Vent Temperature Sensor -G537-
- To check, Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to Rear Upper Body Vent Temperature Sensor -G537-, REMOVING AND INSTALLING .
Rear Heater and A/C Unit, PR Number KH5/ 9AU
- With Rear Fresh Air Blower -V80-
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/ 9AU .
Wiring Harness
- For the rear heater and A/C unit
Wiring Harness
- For the rear heater and A/C unit
- Equipped on some models
Rear Heater and A/C Unit
- Equipped on some models
- With Rear Fresh Air Blower -V80-
Left Rear Upper Body Vent Temperature Sensor -G635-
- Equipped on some models
- To check, Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to LEFT/RIGHT REAR UPPER BODY VENT TEMPERATURE SENSOR -G635- / -G636-, REMOVING AND INSTALLING .
Clip Nut
Rear Fresh Air Blower Control Module -J391-
- Ensure the correct allocation. Refer to the Parts Information.
- To check, Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to Rear Fresh Air Blower Control Module -J391-, REMOVING AND INSTALLING .
Screw
- 1 Nm
- Quantity: 4
Boot
