Heater Core, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "High" A/C SYSTEM, PR NUMBER 9AH/ 9AQ .

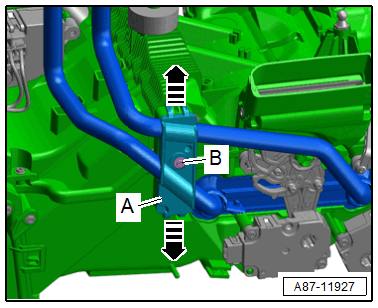

-- Remove the bolt -B-.

-- Release the catches -arrows- and remove the bracket -A-.

-- Remove the right rear temperature control door motor. Refer to Right Rear Temperature Control Door Motor -V314-, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

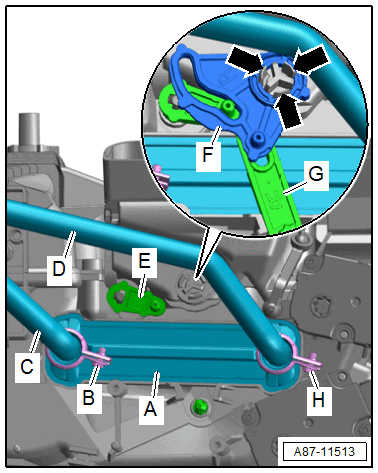

-- Release the catches -arrows- on the support bracket, and remove the curved washer -G- and the relay lever -F-.

-- Turn back the lever -E- from the heat exchanger.

-- Remove the heat exchanger from the heater and A/C unit.

-- Remove the coolant pipes -C and D- to do so loosen the screw-type clamps -B and H-.
