Heater Core, Removing And Installing: Installing
Install in reverse order of removal and note the following:
-- Check the heater and A/C unit via the installation slot for contamination and clean if necessary.

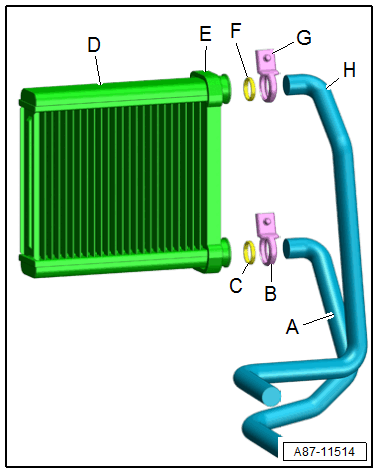

-- Check the seals -E- on the heater core; only install a heater core with seals that are not damaged and are secured glued on.
-- Moisten the heat exchanger connections -D- lightly with coolant.
-- Check the connection area of the coolant pipes -A and H- for damage or contamination.
-- Moisten the new seals -C and F- lightly with coolant.
-- Place the new screw-type clamps -B and G- on the coolant pipes -A and H-.
-- Insert the coolant pipes in the connections of the heat exchanger and push in all the way.
-- Insert the heater core -D- all the way into installation shaft of the heater and A/C unit.
-- Align the coolant pipes on the heater and A/C unit and tighten the screw-type clamps.
