Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING, "High" A/C SYSTEM, Q8, PR NUMBER 9AQ: Removing

Courtesy of AUDI OF AMERICA, LLC

-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.

-- Switch off the ignition.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

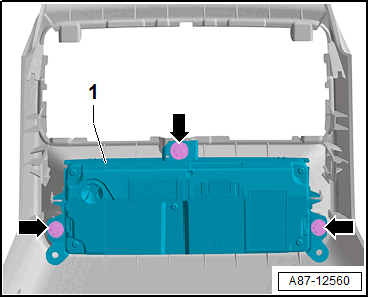

-- Remove the bolts -arrows-.

-- Remove the display control head -1-.
