Forced Air Extraction Vent Frames, Checking from Inside

Courtesy of AUDI OF AMERICA, LLC

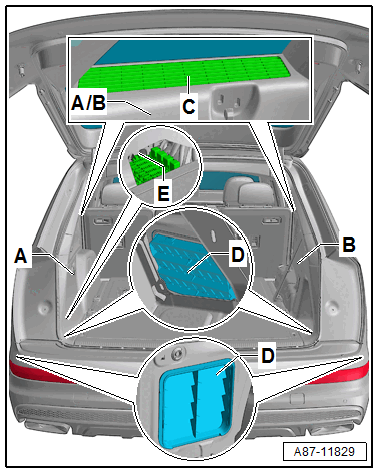

-- Loosen or remove the luggage compartment side trim panel (left -A- and right -B-). Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

• Depending on the version an opening -E- can be installed in the luggage compartment side trim panel (left -A- and /or right -B-). The vent frame -D- can for example be checked via this opening with an endoscope without removing the corresponding luggage compartment side trim panel.

-- Make sure left and right ventilation frames -D- are not obstructed.

• Sealing lips in ventilation frames -A- must move freely and close by themselves.
• The vent frame -A- must be installed on the same side.
• The vent frame -A- may not be covered.
