Plenum Chamber Water Drain, Removing And Installing: Removing
-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.
-- Switch off the ignition.

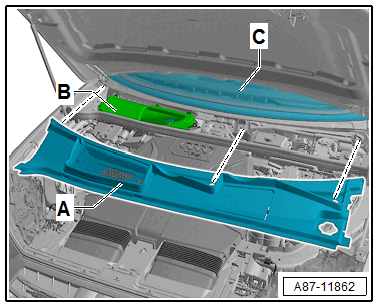

-- Remove the plenum chamber cover -A-. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Depending on the engine and the vehicle version, if necessary loosen the lower plenum chamber bulkhead -D- from the vehicle and pivot it completely to the side (do not open the coolant circuit). Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
TIP

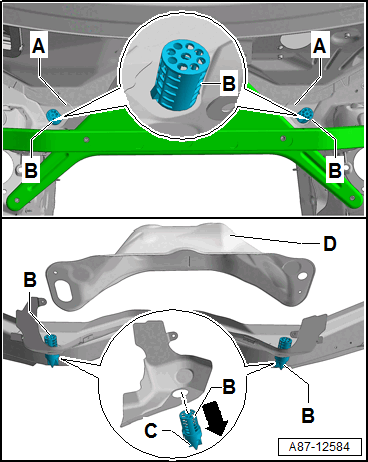

- The water drains -B- are snapped into the opening of the plenum chamber from below.
- Depending on the engine and the vehicle version the water drains -B- on the installed lower plenum chamber bulkhead -D- is not accessible.
-- Remove the water drains -B- downward from the openings of the plenum chamber.
