AIR DUCTS AND VENTS IN THE REAR VEHICLE INTERIOR, "Low" A/C SYSTEM, PR NUMBER 9AD

• Depending on vehicle equipment, there are different versions of the A/C system. Make sure to use the correct version and pay attention to the allocation of different components. Refer to Parts Information.
• To remove the rear air ducts depending on the component location of the air duct, the vent, the center console, and the rear carpet must be removed. Refer to CENTER CONSOLE, REMOVING AND INSTALLING and CARPET, REMOVING AND INSTALLING .

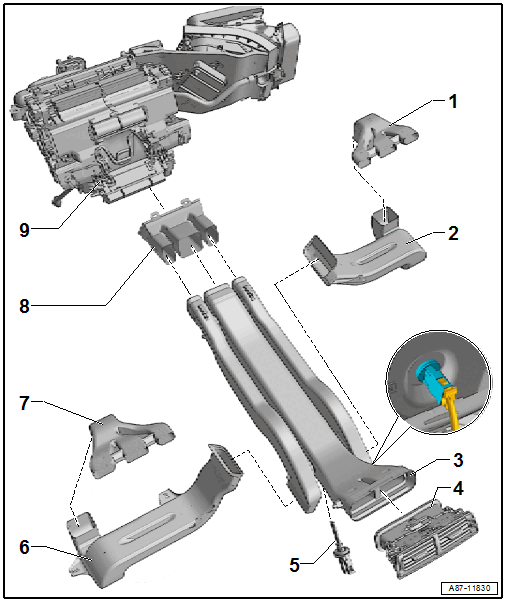

Courtesy of AUDI OF AMERICA, LLC

1. Footwell Vent under the Right Seat (Front Passenger Seat)
   • To remove, remove the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
2. Air Duct to the Footwell Vent under the Right Seat (Front Passenger Seat)
   • To remove, remove the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
3. Rear Air Duct
   • From the air duct (from the front heater and A/C unit) to the rear footwell vents
   • To remove, remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
4. Rear Center Console Vent
   • There are different versions. Refer to the Parts Information.
   • Removing and installing. Refer to OVERVIEW - CENTER CONSOLE .
5. Rear Upper Body Vent Temperature Sensor -G537-
   • Removing and Installing. Refer to Rear Upper Body Vent Temperature Sensor -G537-, REMOVING AND INSTALLING .
6. Air Duct to the Footwell Vent under the Left Seat (Driver Seat)
   • To remove, remove the carpet on the driver side. Refer to CARPET, REMOVING AND INSTALLING .
7. Footwell Vent Under the Left Seat (Driver Seat)
   • To remove, remove the carpet on the driver side. Refer to CARPET, REMOVING AND INSTALLING .
8. Air Routing
   • From the heater and A/C unit to the rear air duct
   • To remove, remove the center console and rear air duct. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
9. Front Heater and A/C Unit with Air Intake Housing
   • Different versions. Refer to OVERVIEW - HEATER AND A/C UNIT  and the Parts Information.
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
   • Air intake, air vents and air routing in the heater and A/C unit. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
