Driver Side FOOTWELL Vent, Removing And Installing: Removing

-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.

-- Move the driver seat as far back as possible.

-- Switch off the ignition.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

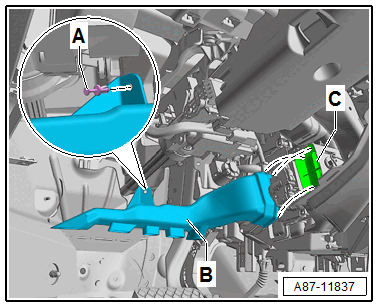

-- Remove the expanding rivet or bolt -A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left footwell vent -B- from the heater and A/C unit -C-.
