Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING: Removing

-- Remove the bracket with the Fragrance System Functional Unit -GX43- and Air Freshening System Control Module -J1101-. Refer to BRACKET FOR Fragrance System Functional Unit -GX43- AND Air Freshening System Control Module -J1101-, REMOVING AND INSTALLING .

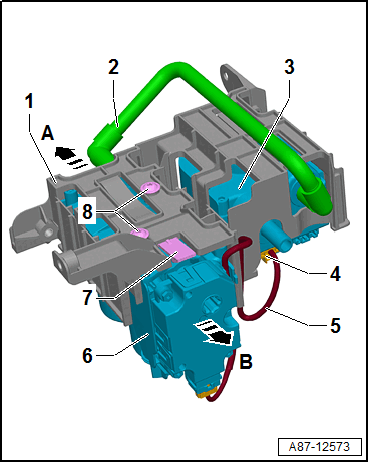

-- Release and disconnect the connector -4- from the Air Freshening System Control Module - J1101- -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -5- from the bracket -1-.

-- If equipped, remove the bolts -8-.

-- Release the locking mechanism -7- and remove the Fragrance System Functional Unit -GX43- -6- direction of the -arrow B-, to do so remove the hose -2- in the direction of the -arrow A- at the same time.
