Fragrance Diffuser System Temperature Sensor -G1056-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the driver seat as far back as possible.

-- Switch off the ignition.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

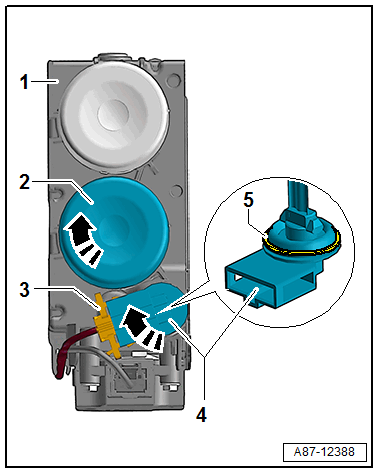

-- Release the fragrance container -2- in the direction of the -arrow- and remove.

-- Release and disconnect the connector -3-.

-- Turn the Fragrance Diffuser System Temperature Sensor -G1056- -4- 90° in direction of the -arrow- and remove from the Fragrance System Functional Unit -GX43- -1-.
