Driver Side Ionizer - J1105-, REMOVING AND INSTALLING, Q8: Removing
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

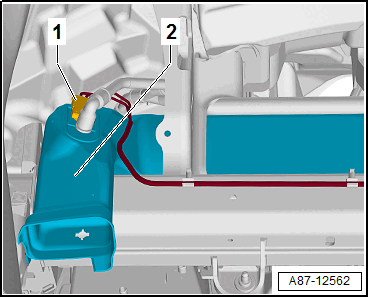

-- Turn the ionizer -1- clockwise and remove from the air duct -2-.
-- Label the allocation of wires to the connector housing for reinstallation.
-- Release the catches and open the doors -B and D- on the connector housing -C-.
-- Using the Wiring Harness Repair Kit :VAS1978B , remove the pins from the connector housing. Refer to CONNECTOR HOUSINGS, RELEASING AND DISASSEMBLING .
