Driver Side Ionizer - J1105-, REMOVING AND INSTALLING, Q7: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the driver seat as far back as possible.

-- Switch off the ignition.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

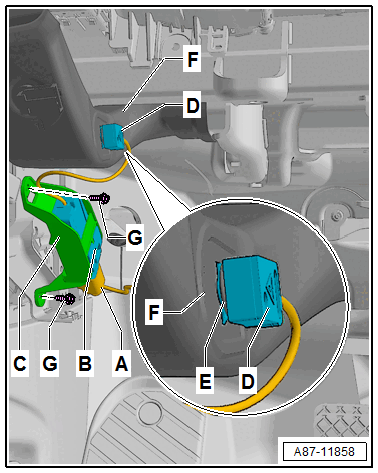

-- Release and disconnect the connector -A-.

-- Turn the ionizer -D- 90° and remove it from the mount in the air duct -F-.

-- Remove the control module for the Driver Side Ionizer -J1105- -B- from the bracket -C-.

TIP

• The bracket for the ionizer -C- is secured with two expanding rivets -G- on the instrument panel crossmember.
