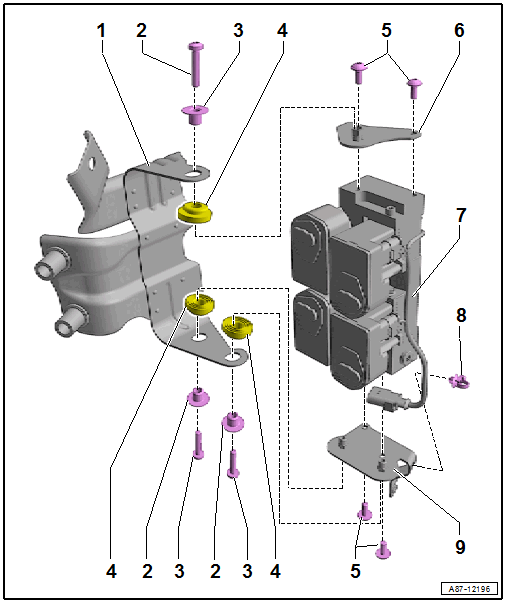

Overview - Heat Pump Valve Unit
- Bracket
- Guide Sleeves
- Bolts
- 9 Nm
- Rubber Bushing
- Bolts
- 9 Nm
- Upper Bracket
- Valve Block with Wiring Harness
- Label the wiring harness routing before removing
- Pay attention to the correct connector assignment for the wiring harness connectors to the valves in the valve block. Refer to Wiring Harness on Valve Block, Connection Diagram
- The valve block valves are currently identical in construction. They are assigned through the connector assignment for the wiring harness connectors and are activated accordingly by the Thermal Management Control Module -J1024-. Refer to the appropriate Wiring Diagram.
- Wiring Harness Bracket
- Lower Bracket
