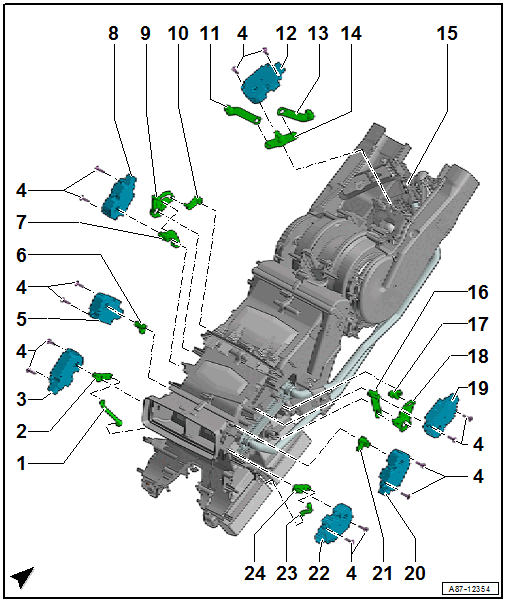

OVERVIEW - REAR ADJUSTMENT MOTORS, A/C SYSTEM WITH TWO EVAPORATORS, "High" A/C SYSTEM, PR NUMBER 9AH / 9AQ

Courtesy of AUDI OF AMERICA, LLC

1. Connecting Rod
   • Do not disconnect from the relay lever and from the doors
2. Actuating Lever
   • Do not disconnect from the connecting rod
3. Left B-Pillar/Footwell Shut-Off Door Motor -V212-
   • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
   • Removing and Installing. Refer to Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
4. Screw
   • 1 Nm
5. Left Rear Upper Body Vent Motor -V315-
   • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
   • Removing and Installing. Refer to Left Rear Upper Body Vent Motor -V315-, REMOVING AND INSTALLING .
6. Actuating Lever
   • Mark before removing (risk of interchanging)
7. Coupling Rod
   • Mark before removing (risk of interchanging)
8. Left Rear Temperature Control Door Motor -V313-
   • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
   • Removing and Installing. Refer to Left Rear Temperature Control Door Motor -V313-, REMOVING AND INSTALLING .
9. Curved Washer
   • Mark before removing (risk of interchanging)
10. Actuating Lever
    • Mark before removing (risk of interchanging)
11. Operating Lever
    • Mark before removing (risk of interchanging)
12. Rear Recirculation Door Motor -V421-
    • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
    • Removing and Installing. Refer to Rear Recirculation Door Motor -V421-, REMOVING AND INSTALLING .
13. Operating Lever
    • Mark before removing (risk of interchanging)
14. Operating Lever
    • Mark before removing (risk of interchanging)
15. Rear Air Distribution Housing with Air Duct
    • Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE MANIFOLD .
    • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "High" A/C SYSTEM, PR NUMBER 9AH/ 9AQ .
16. Coupling Rod
    • Mark before removing (risk of interchanging)
17. Actuating Lever
    • Mark before removing (risk of interchanging)
18. Curved Washer
    • Mark before removing (risk of interchanging)
19. Right Rear Temperature Control Door Motor -V314-
    • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
    • Removing and Installing. Refer to Right Rear Temperature Control Door Motor -V314-, REMOVING AND INSTALLING .
20. Right Rear Upper Body Vent Motor -V316-
    • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
    • Removing and Installing. Refer to Right Rear Upper Body Vent Motor -V316-, REMOVING AND INSTALLING .
21. Actuating Lever
    • Mark before removing (risk of interchanging)
22. Right B-Pillar/Footwell Shut-Off Door Motor -V211-
    • To prevent any confusion, clearly label the wire routing, allocation and actuator for each installation location prior to disconnecting the connector or removing an actuator.
    • Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211-, REMOVING AND INSTALLING .
23. Connecting Rod
    • Do not disconnect from the relay lever and from the doors
24. Actuating Lever
    • Do not disconnect from the connecting rod
