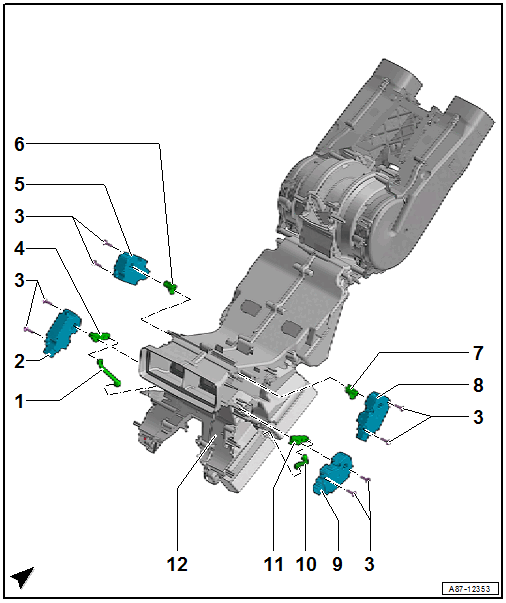

OVERVIEW - REAR ADJUSTMENT MOTORS "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/9AU

Courtesy of AUDI OF AMERICA, LLC

1. Fastener
   • Mark before removing (risk of interchanging)
2. Left B-Pillar/Footwell Shut-Off Door Motor -V212-
   • Removing and Installing. Refer to Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
3. Screw
   • 1 Nm
4. Actuating Lever
   • Mark before removing (risk of interchanging)
5. Left Rear Upper Body Vent Motor -V315-
   • Removing and Installing. Refer to Left Rear Upper Body Vent Motor -V315-, REMOVING AND INSTALLING .
6. Fastener
   • Mark before removing (risk of interchanging)
7. Fastener
   • Mark before removing (risk of interchanging)
8. Right Rear Upper Body Vent Motor -V316-
   • Removing and Installing. Refer to Right Rear Upper Body Vent Motor -V316-, REMOVING AND INSTALLING .
9. Right B-Pillar/Footwell Shut-Off Door Motor -V211-
   • Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211-, REMOVING AND INSTALLING .
10. Fastener
    • Mark before removing (risk of interchanging)
11. Actuating Lever
    • Mark before removing (risk of interchanging)
12. Rear Air Distribution Housing with Air Duct
    • Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE MANIFOLD .
    • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/ 9AU .
