Left Rear Upper Body Vent Motor -V315-, REMOVING AND INSTALLING: Installing

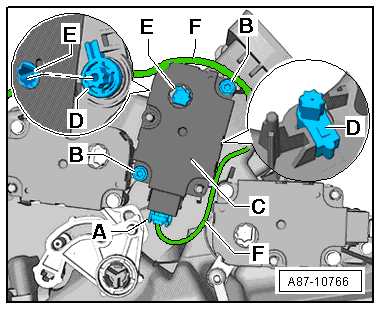

Fig 1: Connector -A- And Adjustment Motor -C-

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

CAUTION:

There is a risk of damaging the adjustment motor electronics when turning the mount.

- Turn the adjustment motor mount only when the wiring harness is connected.

- Install the mount carefully and slowly by hand.

The actuator mount does not have a stop. It turns constantly if the actuator is activated. Therefore, it should not be activated when the actuator is removed.
Check the connection between the actuator mount and the shaft; there must not be any play.
The actuator -E- mount can only be installed in one position on the relay lever -D-.

-- Check the relay lever -D- and the mount of actuator -E-. They must be properly aligned so that they can be joined.

TIP

If the actuator mount -E- is not in the illustrated position (the connecting piece can only be installed in this position), install the connector -A- on the actuator -C- and turn the actuator mount -E- carefully to the position in which the two parts can be joined without pretension.

-- Ensure that the fastener -D- is in the correct installation position.

-- Install the actuator mount -E- onto the connecting element -D-.

-- Check the connection between the actuator -E- and the fastener -D-. There must be no play.

-- Install the bolts -B-.

-- Connect the connector -A-.

-- Install wiring harness -F- so that it cannot come in contact with any moving parts.
