Defroster Door Motor -V107-, REMOVING AND INSTALLING: Installing
Install in reverse order of removal and note the following:
-- Check the gear -A- for the correct installation position.
-- Check the defroster door actuation for function and ease of movement by turning the gear -A-.
There is a risk of damaging the adjustment motor electronics when turning the mount.
- Turn the adjustment motor mount only when the wiring harness is connected.
- Install the mount carefully and slowly by hand.
- The actuator mount does not have a stop. It turns constantly if the actuator is activated. Therefore, it should not be activated when the actuator is removed.
- Check the connection between the actuator mount and the shaft; there must not be any play.

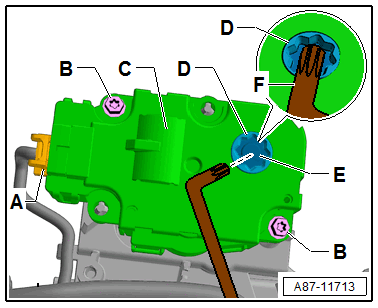

-- Check the shaft -A- and the mount -B- for the actuator -C-. They must be properly aligned so that they can be joined.
-- Attach the actuator mount -B- to the door shaft -A-.
-- Check the connection between the mount -D- for the actuator -C- and the shaft -E- ; there must not be any play.
-- Connect the connector -A-.
-- Install the bolts -B-.
-- Route the wiring harness to the connector -A- so that it cannot come in contact with any moving parts.
-- Perform a basic setting for the A/C system. Refer to GENERAL INFORMATION AND PROCEDURES - ACTUATORS, REMOVING AND INSTALLING .
