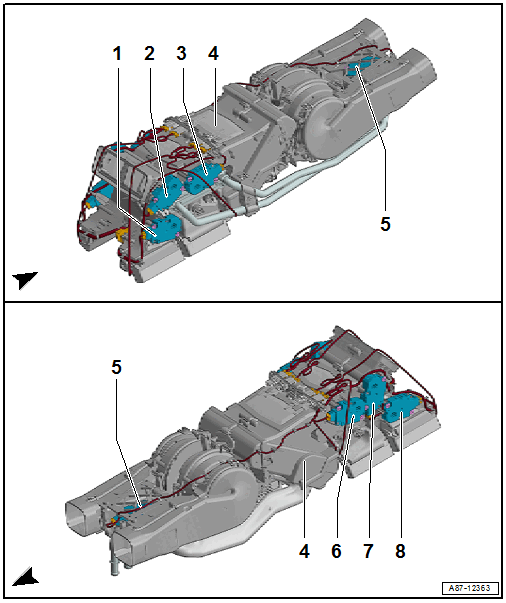

COMPONENT LOCATION OVERVIEW - REAR ADJUSTMENT MOTORS, A/C SYSTEM WITH TWO EVAPORATORS, "High" A/C SYSTEM, PR NUMBER 9AH/ 9AQ

Courtesy of AUDI OF AMERICA, LLC

1. Right B-Pillar/Footwell Shut-Off Door Motor -V211-
   • Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211-, REMOVING AND INSTALLING .
2. Right Rear Upper Body Vent Motor -V316-
   • Removing and Installing. Refer to Right Rear Upper Body Vent Motor -V316-, REMOVING AND INSTALLING .
3. Right Rear Temperature Control Door Motor -V314-
   • Removing and Installing. Refer to Right Rear Temperature Control Door Motor -V314-, REMOVING AND INSTALLING .
4. Rear Heater and A/C Unit
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "High" A/C SYSTEM, PR NUMBER 9AH/ 9AQ .
5. Rear Recirculation Door Motor -V421-
   • Removing and Installing. Refer to Rear Recirculation Door Motor -V421-, REMOVING AND INSTALLING .
6. Left Rear Temperature Control Door Motor -V313-
   • Removing and Installing. Refer to Left Rear Temperature Control Door Motor -V313-, REMOVING AND INSTALLING .
7. Left Rear Upper Body Vent Motor -V315-
   • Removing and Installing. Refer to Left Rear Upper Body Vent Motor -V315-, REMOVING AND INSTALLING .
8. Left B-Pillar/Footwell Shut-Off Door Motor -V212-
   • Removing and Installing. Refer to Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
