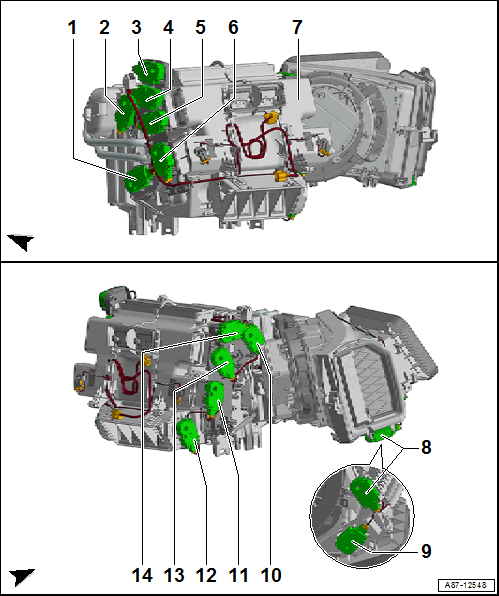

Component Location Overview - Front Adjustment Motors, Q8 Pr Number 9AQ

Courtesy of AUDI OF AMERICA, LLC

1. Rear Temperature Control Door Motor -V137-
   • Removing and Installing. Refer to Rear Temperature Control Door Motor -V137-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to Rear Temperature Control Door Motor .
2. Left Temperature Control Door Motor -V158-
   • Removing and Installing. Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
3. Defroster Door Motor -V107-
   • On RHD vehicles, the Defroster Door Motor -V107- is not installed on the left side of the heater and A/C unit, but rather on the right side.
   • Removing and Installing. Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
4. Left Center Vent Motor -V110-
   • Removing and Installing. Refer to Left Center Vent Motor -V110-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
5. Left Side Vent Motor -V299-
   • Removing and Installing. Refer to Left Side Vent Motor -V299-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
6. Left Footwell Door Motor -V108-
   • Removing and Installing. Refer to Left Footwell Door Motor -V108-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
7. Heater and A/C Unit
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to OVERVIEW - EVAPORATOR HOUSING .
8. Recirculation Door Motor -V113-
   • Removing and Installing. Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING .
9. Fresh Air Door Motor -V438-
   • Removing and Installing. Refer to Fresh Air Door Motor -V438- FUNCTION, REMOVING AND INSTALLING .
10. Right Temperature Control Door Motor -V159-
    • Removing and Installing. Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
11. Right Footwell Door Motor -V109-
    • Removing and Installing. Refer to Right Footwell Door Motor -V109-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
12. Rear Air Distribution Door Motor -V427-
    • Removing and Installing. Refer to Rear Air Distribution Door Motor -V427- / Rear Air Quantity Motor -V443- / Right Rear Air Distribution Motor -V594-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR Rear Air Distribution Door Motor -V427- / Rear Air Quantity Motor -V443-, REMOVING AND INSTALLING .
13. Right Side Vent Motor -V300-
    • Removing and Installing. Refer to Right Side Vent Motor -V300-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
14. Right Center Vent Motor -V111-
    • Removing and Installing. Refer to Right Center Vent Motor -V111-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
