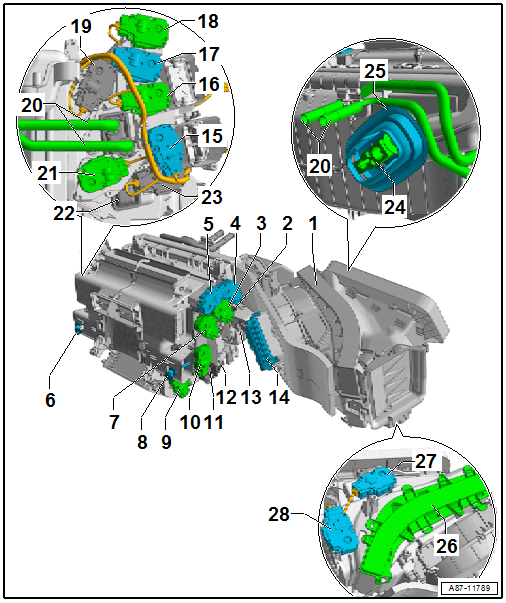

COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS "Mix" OR "High" A/C SYSTEM, Q7, PR NUMBER 9AU/ 9AH

Courtesy of AUDI OF AMERICA, LLC

1. Heater and A/C Unit with Evaporator ("Mix" or "High" A/C System)
   • May only be removed when the refrigerant circuit is empty; bring the vehicle to a workshop that has the necessary tools and in which the work can be performed by qualified personnel. Refer to A/C SYSTEM, GENERAL INFORMATION or LAWS AND REGULATIONS .
   • Overview. Refer to OVERVIEW - EVAPORATOR HOUSING .
   • Heater and A/C Unit with Evaporator, Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
   • Removing and Installing. Refer to EVAPORATOR IN FRONT HEATER AND A/C UNIT, REMOVING AND INSTALLING .
   • Removing and Installing. Refer to FRONT HEATER AND A/C UNIT EVAPORATOR HOUSING, REMOVING AND INSTALLING .
   • Removing and Installing. Refer to AIR DUCT FOR GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING .
   • Cleaning. Refer to EVAPORATOR, CLEANING .
2. Evaporator Vent Temperature Sensor -G263-
   • Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
3. Right Footwell Temperature Control Door Motor -V412-
   • Removing and Installing. Refer to Right Footwell Temperature Control Door Motor -V412-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Low" OR "Mid" A/C SYSTEM), PR NUMBER 9AD/ KH5 .
4. Right Temperature Control Door Motor -V159-
   • Removing and Installing. Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
5. Right Center Vent Motor -V111-
   • Removing and Installing. Refer to Right Center Vent Motor -V111-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
6. Left Footwell Vent Temperature Sensor -G261-
   • Check the Left Footwell Vent Temperature Sensor -G261- using the Vehicle Diagnostic Tester in the "Guided Fault Finding"  function.
   • Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
7. Right Side Vent Motor -V300-
   • Removing and Installing. Refer to Right Side Vent Motor -V300-, REMOVING AND INSTALLING .
   • Bracket, Removing and Installing. Refer to BRACKET FOR RIGHT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
8. Right Footwell Vent Temperature Sensor -G262-
   • Check the Right Footwell Vent Temperature Sensor -G262-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding"  function.
   • Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
9. Rear Air Distribution Door Motor -V427- / Rear Air Quantity Motor -V443-
   • There are different names for these motors depending on the version of the A/C system (Rear Air Distribution Door Motor -V427- for a "Low" or "Mid" A/C system and Rear Air Quantity Motor -V443- for a "Mix" or "High" A/C system) and have the same component location.
   • Removing and Installing. Refer to Rear Air Distribution Door Motor -V427- / Rear Air Quantity Motor -V443- / Right Rear Air Distribution Motor -V594-, REMOVING AND INSTALLING .
10. Right Footwell Door Motor -V109-
    • Removing and Installing. Refer to Right Footwell Door Motor -V109-, REMOVING AND INSTALLING .
11. Auxiliary Heater Control Module -J604- with Auxiliary Heater Heating Element -Z35-
    • Installed depending on vehicle equipment
    • If a parking heater installed as optional equipment is activated as an auxiliary heater in vehicles with a diesel engine, no auxiliary air heater control module -J604- and thus no auxiliary heater heating element -Z35- are installed.
    • On vehicles without an Auxiliary Heater Control Module -J604- (with Auxiliary Heater Heating Element -Z35-), the opening in the heater and A/C unit is sealed with a cap. Refer to Auxiliary Heater Control Module .
    • Removing and Installing. Refer to Auxiliary Heater Control Module .
12. Right Condensation Water Drain Connection (Passenger Side)
    • Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
13. Connection for Glove Compartment Cooling Air Duct Hose
    • On vehicles without the optional equipment of "glove compartment cooling", the opening in the heater and A/C unit is sealed with a cap.
    • Checking the hose to the air duct for glove compartment cooling
    • Removing and Installing. Refer to AIR DUCT FOR GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING .
14. Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
    • There are different versions. Refer to the Parts Information.
    • To check, Use the Vehicle Diagnostic Tester in the "Guided Fault Finding"  function
    • Removing and Installing. Refer to Fresh Air Blower -V2- WITH Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
15. Left Footwell Door Motor -V108-
    • Removing and Installing. Refer to Left Footwell Door Motor -V108-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
16. Left Side Vent Motor -V299-
    • Removing and Installing. Refer to Left Side Vent Motor -V299-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
17. Left Center Vent Motor -V110-
    • Removing and Installing. Refer to Left Center Vent Motor -V110-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
18. Defroster Door Motor -V107-
    • On RHD vehicles, the Defroster Door Motor -V107- is not on the left side, but rather on the right side of the heater and A/C unit.
    • Removing and Installing. Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
19. Left Temperature Control Door Motor -V158-
    • Removing and Installing. Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
20. Coolant Pipes to Heater Core
21. Rear Temperature Control Door Motor -V137-
    • Removing and Installing. Refer to Rear Temperature Control Door Motor -V137-, REMOVING AND INSTALLING .
22. Heater Core for the Heater
    • Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
23. Left Footwell Temperature Control Door Motor -V411-
    • Removing and Installing. Refer to Left Footwell Temperature Control Door Motor -V411-, REMOVING AND INSTALLING .
    • Bracket, Removing and Installing. Refer to BRACKET FOR LEFT ADJUSTMENT MOTORS, REMOVING AND INSTALLING (ON A "Mix" OR "High" A/C SYSTEM), PR NUMBER 9AU/ 9AH/ 9AQ .
24. Expansion Valve
    • May only be removed when the refrigerant circuit is empty; bring the vehicle to a workshop that has the necessary tools and in which the work can be performed by qualified personnel. Refer to A/C SYSTEM, GENERAL INFORMATION or LAWS AND REGULATIONS .
    • There are different versions depending on the refrigerant (R134a or R1234yf). Refer to Parts Information.
    • Removing and Installing. Refer to FRONT EXPANSION VALVE, REMOVING AND INSTALLING .
25. Boot
    • For sealing the holes through the plenum chamber rear panel for the refrigerant lines
26. Dust and Pollen Filter
    • Different versions as a replacement part (with and without activated charcoal filter element). Refer to the Parts Information.
    • Note the replacement intervals. Refer to the Maintenance Tables.
    • Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
27. Fresh Air Door Motor -V438-
    • Removing and Installing. Refer to Fresh Air Door Motor -V438- FUNCTION, REMOVING AND INSTALLING .
28. Recirculation Door Motor -V113-
    • Removing and Installing. Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING .
