Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

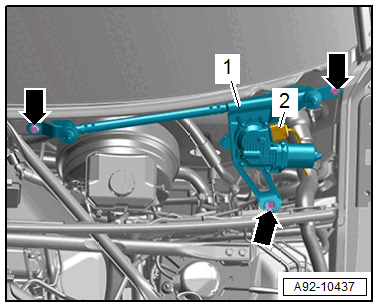

-- Disconnect the connector -2-.
-- Remove the bolts -arrows-.
-- Remove the windshield wiper frame -1- with linkage and windshield wiper motor from the plenum chamber.
