Windshield Wiper Arms, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

To prevent damage to the windshield wiper arms, only loosen using the Puller - Wiper Arm Kit - Puller 1:T10369/1 .
If the windshield wiper motor is to be run during the work procedure, the front lid must be closed. Otherwise, the power supply to the wiper motor will be interrupted.

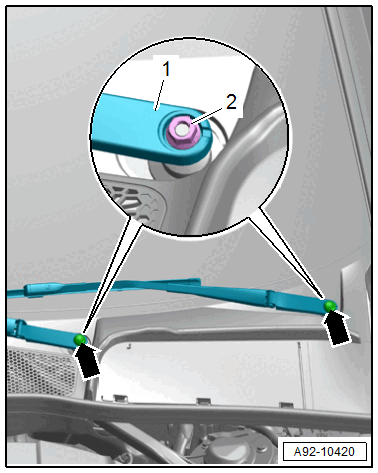

-- Pry the caps -arrows- off of the windshield wiper arms -1- with a screwdriver.

Courtesy of AUDI

-- Loosen the nuts -2- several turns.

-- Attach the Puller - Wiper Arm Kit - Puller 1:T10369/1 to the wiper arm -1-, as shown.

Fig 1: Identifying Windshield Wiper Arm And Puller T10369/1

Courtesy of AUDI

-- Position the thrust piece -2- on the windshield wiper axle.

-- Turn the bolt -3- clockwise until the windshield wiper arm is removed from the windshield wiper axle.

-- Remove the nuts completely and remove the windshield wiper arms.
